Mellanox CS7500 648-Port EDR 100Gb/s InfiniBand Director Switch - Part ID: MCS7500

Faster servers based on PCIe 3.0, combined with high-performance storage and applications that use increasingly complex computations, are causing data bandwidth requirements to spiral upward. As servers are deployed with next generation processors, High-Performance Computing (HPC) environments and Enterprise Data Centers (EDC) will need every last bit of bandwidth delivered with Mellanox’s next generation of EDR InfiniBand high-speed smart switches.

Built with Mellanox’s latest Switch-IB™ InfiniBand switch devices, the CS7500 provides up to 648 100Gb/s full bi-directional bandwidth per port. The CS7500 modular chassis switch provide an excellent price-performance ratio for medium to extremely large size clusters, along with the reliability and manageability expected from a director-class switch.

The CS7500 is the world’s first smart network switch, designed to enable in-network computing through the Co-Design Scalable Hierarchical Aggregation Protocol (SHArP) technology. The Co-Design architecture enables the usage of all active data center devices to accelerate the communications frameworks, resulting in order of magnitude applications performance improvements.

– Industry-leading switch platform in performance, power, and density

– Collective communication acceleration

– Designed for energy and cost savings

– Quick and easy setup and management

– Maximizes performance by removing fabric congestions

– Backward compatible to FDR technology

– 648 X EDR 100Gb/s ports in a 28U switch

– 130Tb/s aggregate switch throughput

– Ultra low switch latency

– N+N redundant & hot-swappable power

– 80 gold+ and energy star certified power supplies

– Dual-core x86 CPU

– SGCC plating

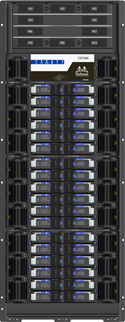

MELLANOX CS7500

– 28U modular chassis

– 36 QSFP28 EDR 100Gb/s InfiniBand ports per leaf blade

SWITCH SPECIFICATIONS

– Compliant with IBTA 1.21 and 1.3

– 9 virtual lanes: 8 data + 1 management

– 256 to 4Kbyte MTU

– 4X48K entry linear forwarding data base

MANAGEMENT PORTS

– DHCP

– Familiar Industry Standard CLI

– Management over IPv6

– Management IP

– SNMP v1,v2,v3

– Web UI

FABRIC MANAGEMENT

– On-board Subnet Manager supporting fabrics of up to 2k nodes

– Unified Fabric Manager™ (UFM™) Agent

CONNECTORS AND CABLING

– QSFP28 connectors

– Passive copper or active fiber cables

– Optical modules

INDICATORS

– Per port status LED Link, Activity

– System status LEDs: System, fans, power supplies

– Port Error LED

– Unit ID LED

PHYSICAL CHARACTERISTICS

– Dimensions: 48.96’’H x 17.64’’W x 30.3’’D

– Weight: Fully populated 369.5kg (815lb)

POWER SUPPLY

– Hot swappable with N+N redundancy

– Input range: 180-265VAC

– Frequency: 47-63Hz, single phase AC

COOLING

– Hot-swappable fan trays

– Front-to-rear air flow

– Auto-heat sensing fans

POWER CONSUMPTION

– Typical power consumption (ATIS): 6367.1W

– Maximum power consumption: 13531W (Includes 648 QSFP ports at 3.5W each)
