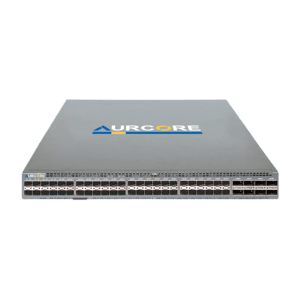

AES6104 | 48 × 25GE SFP28, 8 × 100GE QSFP28

SKU: AES6104

The AES6104 delivers high-throughput, low-latency switching optimized for spine-layer deployments in modern data centers. It supports line-rate Layer 2 and Layer 3 switching across 48 × 25GE SFP28 and 8 × 100GE QSFP28 ports. More details...

Product Details

AES6104 – Data Center Switch

4 Tbps High-Performance ToR / Spine Switch

Key Features

48 × 25GE SFP28 + 8 × 100GE QSFP28 ports
QSFP28 supports 100GE, 40GE, or breakout to 4 × 25GE / 4 × 10GE
4 Tbps switching capacity with 2800 Mpps forwarding rate
Optimized for Top-of-Rack (ToR) and spine-layer deployments
Supports Layer 2 and Layer 3 line-rate switching
Preloaded with ONIE for flexible NOS deployment (e.g., SONiC, commercial NOS)
Aurc-NOS with VXLAN, EVPN, MLAG, RoCE v2 support
Routing protocols: BGP, OSPF, IS-IS, MPLS
Hot-swappable redundant AC/DC power supplies
4+1 redundant hot-swappable fan modules
Front-to-back or back-to-front airflow options
Front-facing ports; rear-access power and cooling

Specifications

Model	AES6104
Interfaces	48 × 25GE SFP28, 8 × 100GE QSFP28
Management Ports	1 × MGMT, 1 × Console, 1 × USB 2.0
Chipset	Marvell
Switching Capacity	4 Tbps
Forwarding Rate	2800 Mpps
System Memory	4 GB
Cooling	5 hot-swappable fan modules
Power Supply	Dual redundant (1+1), hot-swappable
Power Consumption	125W (typical), 430W (max)
AC Input	100–240V (90–264V max), 50–60 Hz
DC Input	180–310V
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Dimensions	18.50" × 17.32" × 1.73" (1U)
Weight	11 kg (24.25 lbs)
Installation	Rack mount
